A reptile thermostat is the single most important piece of safety equipment in your enclosure. Without one, a heating element is essentially a runaway fire hazard that can lead to fatal burns or neurological damage in your pets (as documented by the Association of Reptilian and Amphibian Veterinarians). Many beginners assume that purchasing a 100 watt bulb means the enclosure will magically stay at the correct temperature, but ambient room temperatures and airflow make this impossible. You must have a controller that interprets the heat in the environment and adjusts the output of the heating element accordingly. Choosing the wrong type of thermostat for your specific heat source does more than just cause temperature swings; it can actively shorten the lifespan of your expensive bulbs or create a strobe light effect that stresses your animals. To keep your reptiles safe, you must match the control method to the physics of the heater you are using.

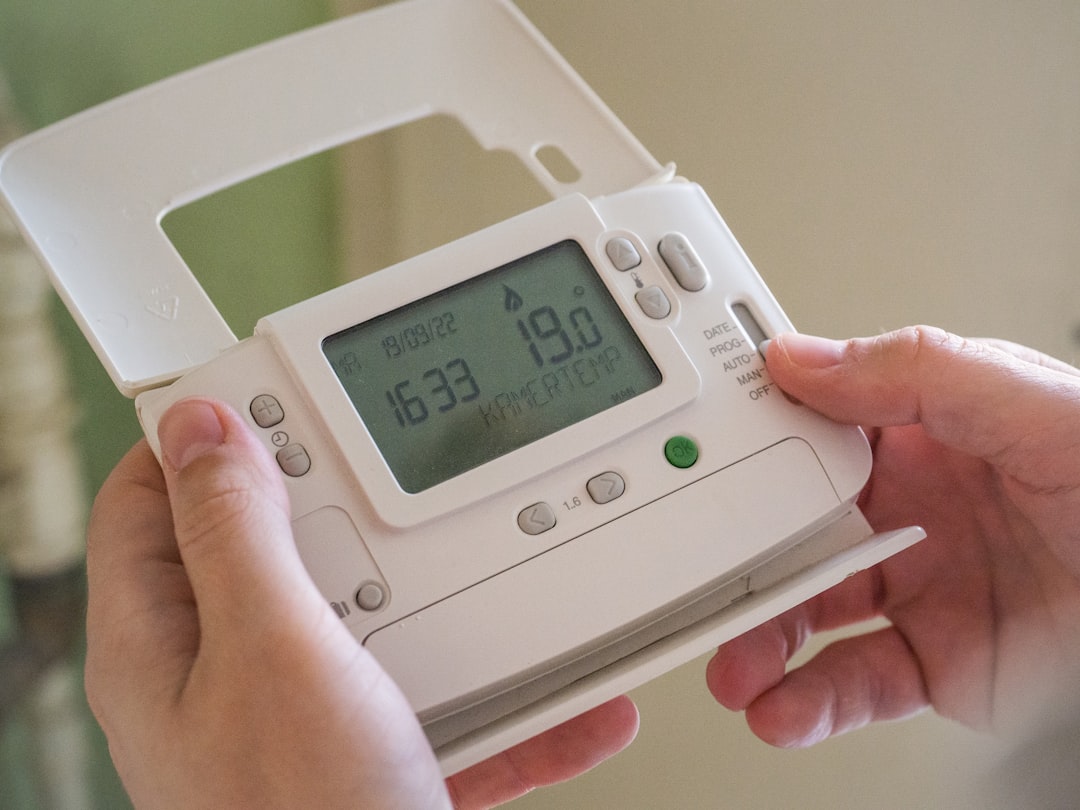

Photo by Arthur Lambillotte on Unsplash
Understanding on/off controllers for basic heating
The on/off thermostat is the most basic and affordable type of temperature controller available to keepers. Its operation is purely binary. When the temperature probe detects that the environment has fallen below your target set point, the thermostat sends 100 percent power to the heating device. Once the probe reaches the target temperature, the thermostat cuts power completely. This cycle repeats indefinitely. While this is a cost effective solution, it creates a “sawtooth” temperature profile where the heat constantly fluctuates between a few degrees above and below the target. This fluctuation is known as the differential or hysteresis.
For many keepers, the Inkbird ITC-308 Temperature Controller is the standard entry level choice for this category; see the Inkbird ITC-306A spec sheet for a pre-wired variant with similar control logic. It is highly reliable for specific applications, such as controlling heat mats (under tank heaters) or heat tape. Because these conductive heat sources have high thermal mass and take time to cool down, the on/off cycling is less jarring to the animal. However, you should never use an on/off thermostat with a light emitting heat source like a basking lamp or a halogen flood. Doing so will cause the light to flash on and off every few minutes, which is disorienting for the reptile and will blow the filament in the bulb within weeks.
The primary tradeoff with on/off units is precision. If you are keeping a sensitive species that requires a very tight temperature range, the 2 to 5 degree swing typical of these units might be unacceptable. They are best suited for supplemental heat sources or for species with high tolerance for temperature gradients. When setting these up, you must ensure the probe is secured firmly in the “hot spot” because if the probe moves to a cooler area, the thermostat will keep the heater on indefinitely, potentially overheating the primary basking zone.
The precision of pulse proportional thermostats
Pulse proportional thermostats represent a significant step up in technology and animal welfare. Instead of simply cutting power on and off, these controllers send short “pulses” of electricity to the heating element. As the enclosure approaches the target temperature, the pulses become shorter and less frequent. When the temperature is exactly at the set point, the thermostat sends just enough micro-pulses to maintain that equilibrium. This results in an incredibly stable temperature line with almost zero fluctuation.
A high quality option like the Vivarium Electronics VE-300X2 Thermostat utilizes this technology to manage high wattage ceramic heat emitters (CHEs) or deep heat projectors (DHPs) from manufacturers like Zoo Med Laboratories. Because these heating elements do not emit visible light, the rapid pulsing of power is invisible and does not cause any visual disturbance to the animal. This type of control is ideal for rack systems or PVC enclosures where maintaining a constant ambient temperature is critical for digestion and metabolic health.
The main constraint of pulse proportional control is that it is still incompatible with light emitting bulbs. Even though the pulses are fast, they will still cause a visible flicker in a halogen or incandescent bulb, which is stressful for the animal and hard on the hardware. If you are using non-light emitting heat sources and want the most stable environment possible, pulse proportional is the industry standard. It eliminates the “thermal stress” caused by the constant expansion and contraction of heating elements found in on/off systems, which actually extends the life of your heating equipment over the long term.
Why dimming thermostats are the gold standard
Dimming thermostats are widely considered the pinnacle of reptile husbandry technology, particularly for naturalistic and bioactive setups. Unlike on/off or pulse units, a dimming thermostat varies the actual voltage sent to the heater. It functions much like a dimmer switch on a dining room light, but it is controlled automatically by a computer chip and a temperature probe. If the tank is one degree too cool, the thermostat increases the power slightly. If it is one degree too warm, it dims the power.
The Herpstat 2 Digital Thermostat is frequently cited by professional keepers as the best in class for this category. The reason dimming is superior is that it is the only safe way to regulate light emitting basking lamps. By dimming the bulb rather than flashing it, the thermostat maintains a consistent visual environment for the reptile while still providing precise heat control. This mimics the natural filtering of sunlight through clouds or canopy cover.
Beyond just heat control, high end dimming thermostats often include features like “basking ramps.” This allows the light to slowly brighten in the morning and dim in the evening, simulating a natural sunrise and sunset. This helps regulate the circadian rhythm of your reptile, which is vital for species like bearded dragons or uromastyx. While the initial investment is higher than other types, the safety features (such as high/low temperature alarms and internal fuses) and the ability to use any heat source make it the most versatile tool in a keeper’s arsenal. When you consider the cost of replacing animals or repairing fire damage, the price of a dimming unit is negligible.
Safety first: Electrical and fire precautions
SAFETY WARNING: Any device that generates heat is a potential fire hazard. You must verify that your thermostat is rated for the total wattage of the heaters you plan to plug into it. Overloading a thermostat can cause the internal relay to melt, potentially sticking in the “on” position and cooking your enclosure. Always use a smoke detector in your reptile room and ensure your thermostat has a grounded plug. If you are using high wattage bulbs, check your ceramic sockets for signs of scorching or brittle wires regularly.
When setting up your heat system, you should also consider a “failsafe” layer. For high value collections or sensitive species, some keepers plug their primary high end thermostat into a secondary, cheaper on/off thermostat set 5 degrees higher. This way, if the primary unit fails in the “on” position, the secondary unit will cut power before the enclosure reaches lethal temperatures. Additionally, always use a separate digital thermometer to verify the thermostat’s readings. The Vivaria.net husbandry reference library provides species-specific temperature bands that can serve as a cross-check against your probe readings. Probes can fail or drift over time, and having a second point of data is the only way to catch a calibration error before it becomes a tragedy.
Step-by-step guide to thermostat setup and probe placement
Properly installing your thermostat is just as important as choosing the right type. If the probe is not positioned correctly, the thermostat is essentially flying blind. Follow these steps to ensure a safe and accurate installation.
- Select the probe location: For belly heat (heat mats), the probe should be placed directly on top of the heat mat, usually sandwiched between the mat and the bottom of the enclosure (outside the tank). For ambient heat sources like CHEs or Halogens, the probe should be mounted 2 to 4 inches directly below the heat source or secured to the basking surface.
- Secure the probe: Never use tape inside a reptile enclosure, as the adhesive can strip the skin off a reptile if it comes loose. Use hot glue, silicone, or plastic cable ties to secure the probe wire. Ensure the animal cannot dislodge the probe or move it away from the heat source.
- Set the parameters: Plug your heating element into the thermostat and set your target temperature. If your thermostat has a “night drop” feature, program the secondary temperature and the time you want the transition to occur.
- Monitor and calibrate: Allow the enclosure to reach equilibrium for at least 4 to 6 hours. Use a handheld infrared temperature gun to check the actual surface temperatures of the basking spot. If the thermostat says 95F but the temp gun says 90F, adjust the thermostat setting upward to compensate for the gap.
- Test the alarms: If your unit has high/low temperature alarms, set them to a range that allows for natural variation but alerts you to a failure (e.g., 5 degrees above the basking high and 5 degrees below the night low).
Comparison of thermostat technologies
The following framework helps you decide which technology fits your specific enclosure needs based on the heating hardware you have selected.
| Feature | On/Off Thermostat | Pulse Proportional | Dimming Thermostat |
|---|---|---|---|
| Best Heater Match | Heat Mats, Heat Tape | CHE, DHP, Radiant Heat Panels | Halogens, Incandescent, All others |
| Temperature Stability | Low (Sawtooth pattern) | High (Constant) | High (Constant) |
| Light Compatibility | No (Causes flickering) | No (Causes flickering) | Yes (Best for bulbs) |
| Equipment Lifespan | Moderate | Long (Reduces stress) | Long (Soft starts) |
| Typical Cost | $25 - $50 | $80 - $150 | $120 - $250+ |
As shown in the table, the choice is driven primarily by the type of heat source. If you are following a modern husbandry approach that emphasizes overhead halogen heating to mimic the sun’s IR-A and IR-B output (see ReptiFiles’ detailed breakdown of infrared heat), a dimming thermostat is your only viable option. If you are running a rack of ball pythons on heat tape, the pulse proportional unit offers the best balance of precision and cost.
Common mistakes to avoid with reptile thermostats
One of the most frequent mistakes keepers make is placing the thermostat probe too far from the heat source. If you place the probe on the “cool side” of the tank while trying to regulate a basking lamp on the “hot side,” the lamp will stay at 100 percent power until the entire room reaches the target temperature. This will almost certainly result in a lethally hot basking spot. The probe must be positioned to measure the specific output of the heater it is controlling.
Another common problem is “probe displacement.” Reptiles, especially active species like semi-arboreal colubrids or heavy bodied pythons, can easily knock a probe out of place. If a probe is moved away from the heat mat and onto the cool glass, the thermostat will “think” the mat is cold and crank up the heat. Always use mechanical fasteners like zip ties or specialized probe clips to ensure the sensor stays exactly where you intended.
Keepers also frequently ignore the wattage limits of their devices. Most entry level thermostats are rated for 300 to 600 watts. While this sounds like a lot, if you are daisy chaining multiple enclosures or using high output mercury vapor bulbs, you can quickly approach that limit. Running a thermostat at its maximum capacity generates internal heat and increases the likelihood of a component failure. A safe rule of thumb is to never exceed 80 percent of the manufacturer’s rated wattage. If you have a 600 watt thermostat, try to keep the total load under 480 watts.
Finally, do not assume that a “dimmer” is the same as a “dimming thermostat.” A manual lamp dimmer (the kind with a sliding switch) does not have a probe and cannot react to changes in room temperature. If your house gets 5 degrees warmer in the afternoon, a manual dimmer will allow the enclosure to get 5 degrees warmer too. Only a true thermostat with a feedback loop can provide the safety and stability required for reptile health.
FAQ
Can I use one thermostat for multiple enclosures?
You can only use one thermostat for multiple enclosures if the enclosures are identical in size, substrate, and heating elements, and if they are located in the same ambient environment. This is common in rack systems where one probe is placed on a “representative” tub, and the thermostat controls the heat tape for the entire rack. However, if the enclosures are different - for example, one PVC and one glass - the heat retention will be different, and the single probe will not accurately reflect the conditions in both tanks. For separate display tanks, you must use a multi-channel thermostat like the Herpstat 2 Digital Thermostat, which has two separate probes and two separate power outlets to control two environments independently.
Why is my heat lamp flickering when plugged into a thermostat?
Flickering is almost always a sign that you are using an on/off or pulse proportional thermostat with a light emitting bulb. On/off thermostats cut power entirely when the temp is reached, leading to a strobe effect. Pulse proportional thermostats send rapid bursts of power that the human eye (and the reptile’s eye) perceives as a high speed flicker. This is not only irritating for the animal but will also cause the filament in the bulb to burn out prematurely because it is not designed for rapid power cycling. To fix this, you must switch to a dimming thermostat or change your heat source to a non-light emitting type like a ceramic heat emitter.
What is the difference between a thermostat and a thermometer?
A thermometer is a passive device that only measures and displays the temperature. It has no way to change the temperature. A thermostat is an active controller that measures the temperature and then takes action by turning a heater on or off or adjusting its power level. You need both. The thermostat acts as the “brain” to control the heat, while a separate, independent thermometer (or a temp gun) acts as a “verification tool” to ensure the thermostat is working correctly. Never rely solely on the digital readout of a thermostat; always verify the basking surface temperatures manually with an infrared thermometer to ensure your pet is safe.
Final thoughts on choosing a thermostat
Choosing the right thermostat is a non-negotiable part of responsible reptile ownership. While on/off controllers like the Inkbird ITC-308 Temperature Controller are acceptable for heat mats, they lack the precision and bulb compatibility required for modern basking setups. For non-light emitting sources, the Vivarium Electronics VE-300X2 Thermostat offers superior stability through pulse proportional technology. However, if you want the best possible environment for your pet, investing in a dimming unit like the Herpstat 2 Digital Thermostat is the most effective way to manage halogen heat and simulate natural cycles. Take the time to secure your probes, verify your wattages, and always keep a backup thermometer on hand to ensure your enclosure remains a safe haven rather than a hazard.
Bookmark this guide for the next time you upgrade your enclosure or add a new reptile to your collection.
